LogicSim

LogicSim is a small React web app I built for fun to play with digital logic circuits directly in the browser. The idea is simple: pick components, place them on the board, wire them together, and immediately see signals propagate through the circuit (including wires lighting up when “powered”).

Why I built it

I've always loved logic circuits (the “LEGO” feeling of combining simple gates into something bigger), and I wanted a tool that felt pleasant to use — not a heavy EDA suite, just a quick sandbox.

This project wasn't meant to be complete or perfect. It was mainly an experiment to see if I could make a circuit editor that feels smooth, visual, and satisfying.

What you can build

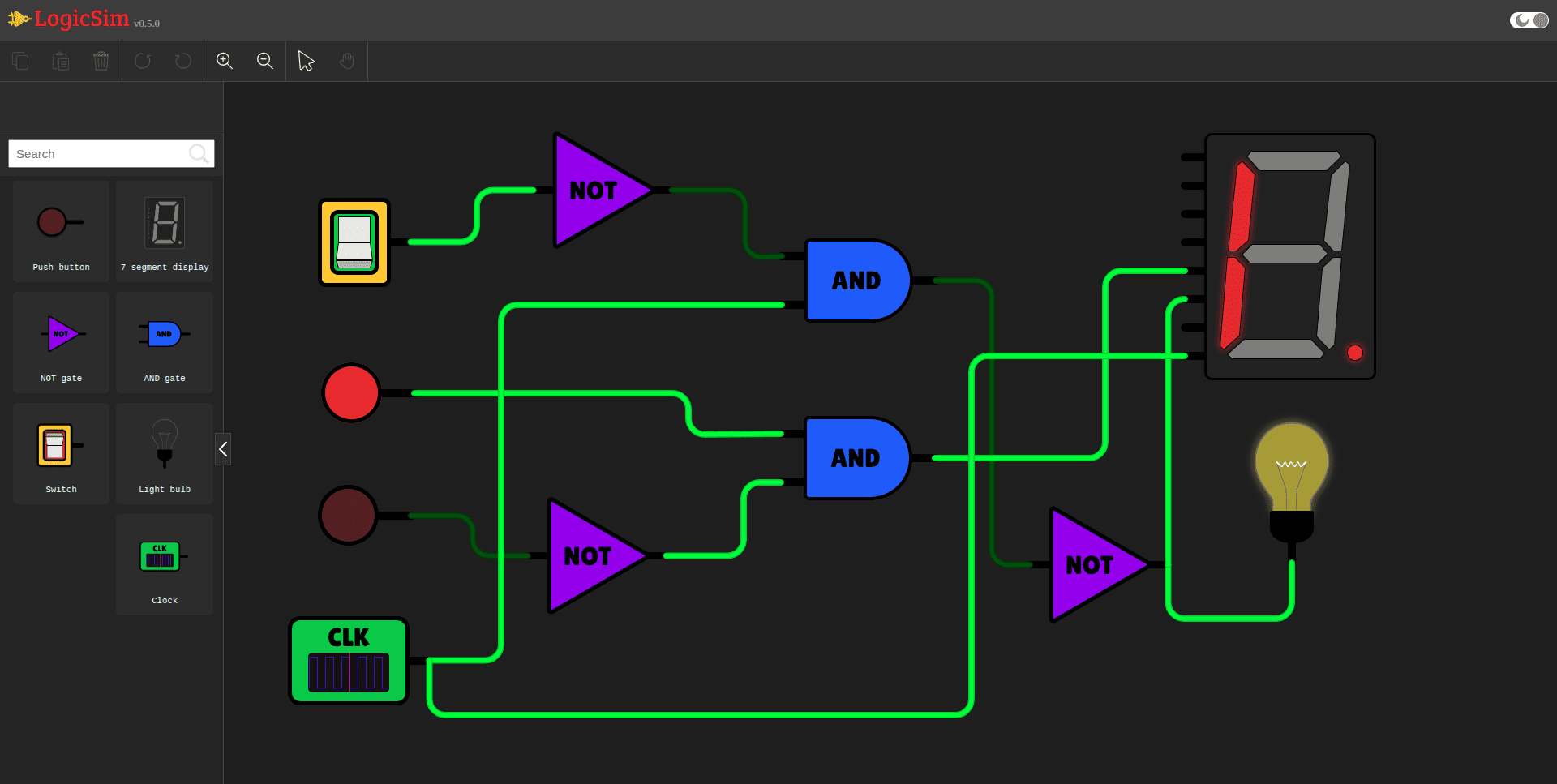

The UI is a drag-and-drop circuit builder: you select components from a sidebar and drop them on the board. Then you connect pins by drawing wires between connection points, and you can interact with inputs (switches/buttons) to test behavior in real time.

Available elements (the “core” set I focused on):

• Logic gates: AND & NOT
• Inputs: switch, push button, clock
• Outputs: LED / light bulb, 7-segment display

SVG-first rendering

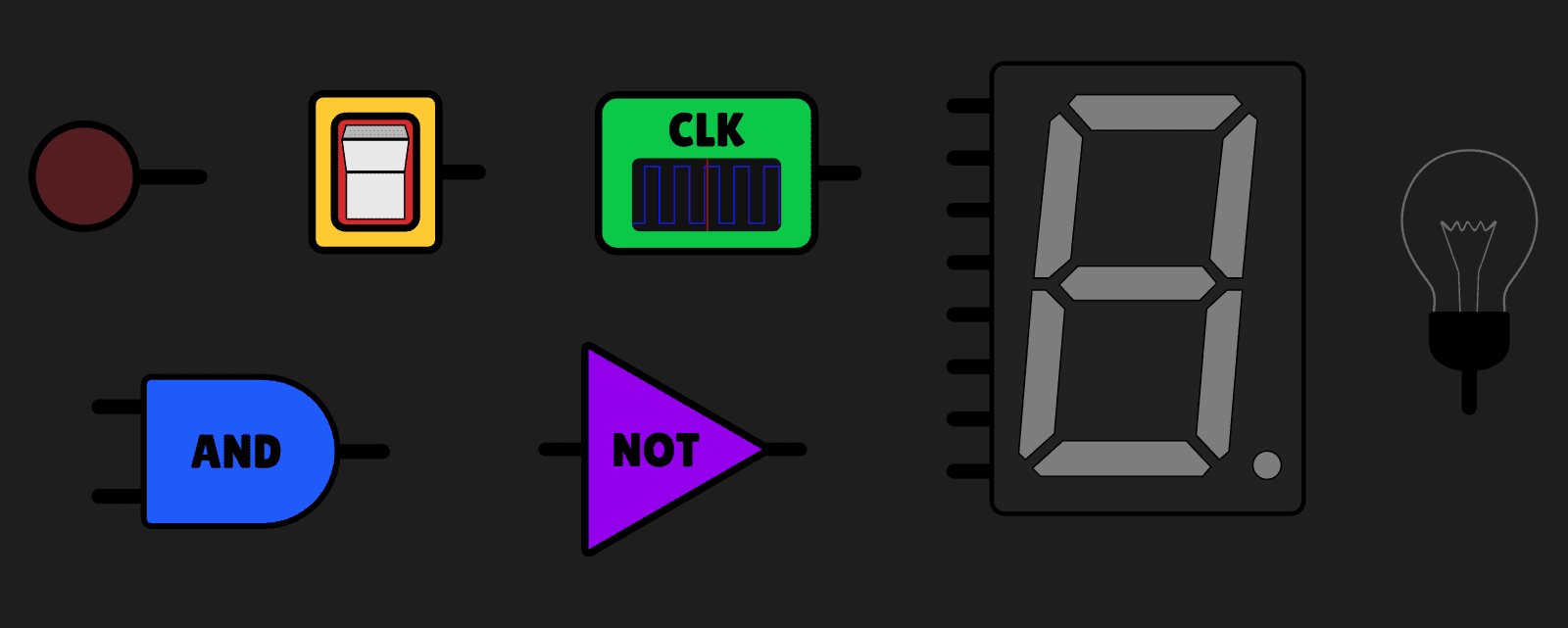

One of the most fun parts of this project was the rendering approach: everything is drawn with custom SVG — the gates, the components, and even the dynamic wires. Because it's SVG, zooming stays crisp and the circuit can look really clean (and honestly, that was a big motivation).

A few UI details I cared about:

• Wires visually “light up” when a signal is flowing through them.
• Zoom + pan to navigate larger circuits.
• Dark/light theme toggle.

Simulation model (how it works)

Under the hood, the circuit is basically treated like a graph:

• Components expose input/output pins.
• Wires connect pins together, forming nets.
• Each tick (or interaction) recomputes outputs based on current inputs, then propagates updates through the network until things stabilize.

For sequential behavior, the clock component drives a periodic signal (so you can do simple timing-based circuits), and the 7-segment display just maps the input bits to segments.

This is not a “perfect” electrical simulation — it's closer to a pragmatic digital logic evaluator focused on interactivity and visual feedback.

Live demo

You can try it here: it runs fully in the browser.

What I learned

This project taught me a lot about the challenges of building interactive editors and simulations, including:

• Designing UI state for a canvas-like editor (selection, dragging, hit-testing, rotations, etc.).
• Representing a circuit in a way that's both easy to render and easy to simulate.
• Making SVG feel responsive and pleasant for something more complex than icons.

It also reinforced something important: constraints are useful. By keeping the scope small, I could focus on polish (especially the wiring and visuals) instead of drowning in features.

What could be improved

A few things I'd add if I ever revive it:

• Save/load circuits (right now there's no persistence).
• Custom gates / sub-circuits (compose circuits into reusable blocks).
• More components (counters, flip-flops, other logic gates, etc.).
• Better simulation scheduling for large circuits (current approach is fine for small/medium builds).

Even with these limitations, I'm happy with it as a “fun, interactive sandbox” project — it's the kind of thing I personally love exploring.
